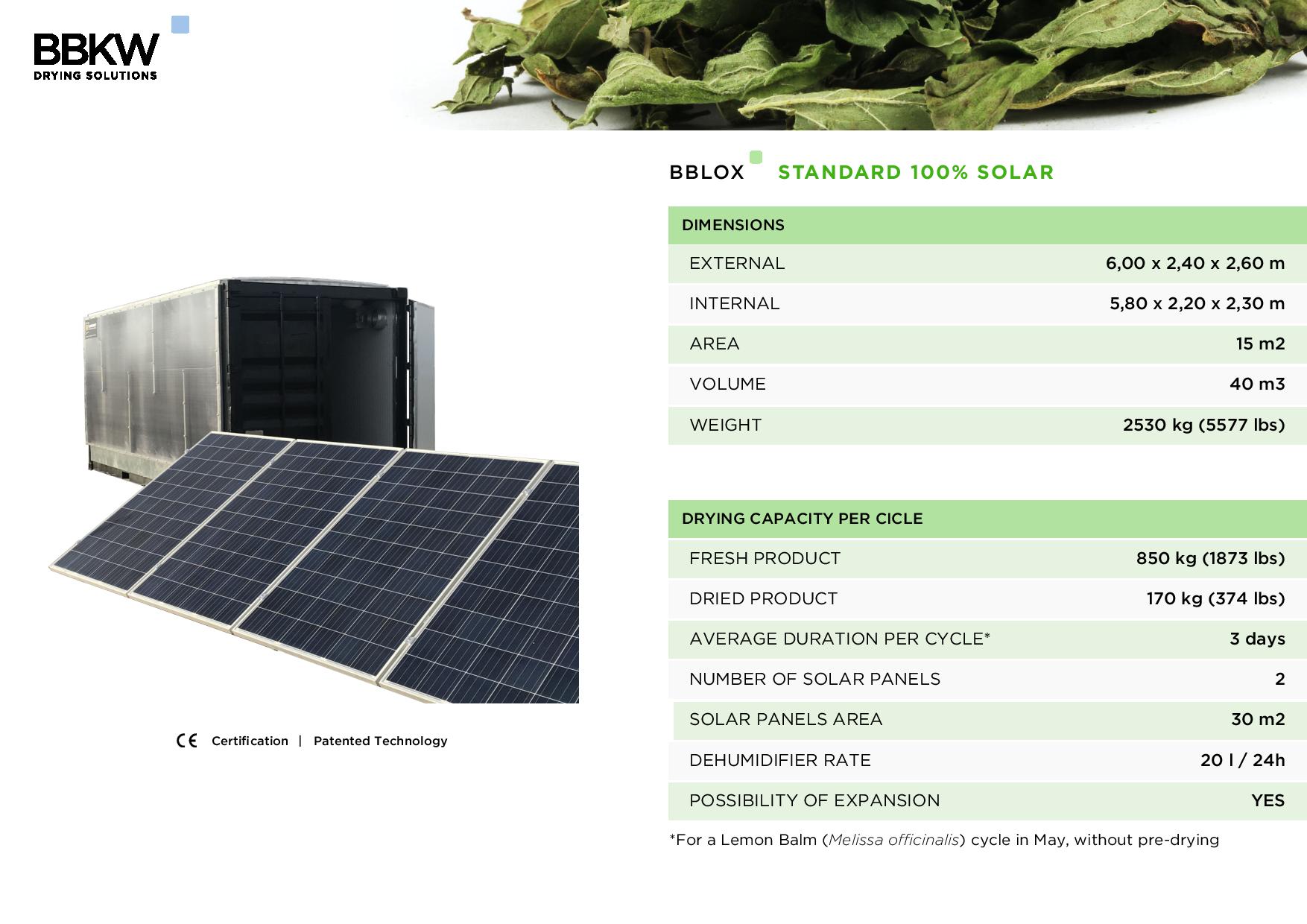

HYBRID SOLAR DRYER - BBKW STANDARD 100% SOLAR

HYBRID SOLAR DRYER - AROMATIC, MEDICINAL PLANTS AND FOOD - BBKW STANDARD 100% SOLAR

The base module consists of a metallic structure covered by steel panels of 3 mm lined inside with isothermal panels of 30 mm.

SOLAR COLLECTORS
Polycarbonate solar collectors with calibrated temperature and humidity sensors.

PHOTOVOLTAIC PANELS

1 x Inverter + Charger + Regulator axpert 5 kvas 48 V MPPT
6 x 270 W High Performance Polycrystalline Photovoltaic Modules
4 x U-power batteries 250 Ah C100 12 V
1 x DC 25 A circuit breaker
1 x AC 40 A circuit breaker
1 x frame 4 modules

Characteristics:
- Current load capacity of the solar regulator: 80A MPPT.
- Current load capacity of the charger: 60A.
- Capacity rating of the inverter: 5Kva 4000W (peak power of 8000W).

AIR FORCING
The admission and escape of air in the drying chamber is carried out through ventilation ducts, equipped at the end with 3 watertight motorized flow registers and 2 axial centrifugal extractors.

2 x Extractors - Flow 990 m3 / h
3 x Servo motor registration - power 1.5 W
3 x Temperature and Relative Humidity Sensors
6 x Fan - 200 W helical fan

DEHUMIDIFIER
Condensation dehumidifier with extractive capacity of 20 l water / day and air flow of 260 m3 / h.

HEATING
Electric diesel heater, operating only at night, equipped with a deposit with sufficient capacity for a drying cycle, delivering a heat power of 20 kw, controlled by the computer module

COMPUTER MODULE
1 x Electrical panel inserted in IP65 stock box with:
Processor with web server acting on 2 relay activation modules (capacity for 8 relays each)

2 x Dehumidifier
2 x Heater
1 x Auxiliary equipment + socket (circulation fan or other)
3 x Registration motor side panel, top and exhaust extractor
3 x Temperature and humidity sensors (ceiling, wall and interior)

COMMUNICATION
SIM slot for data card for any network (preferred)
RJ45 ethernet socket

DRYING EQUIPMENT (OPTIONAL)
Drying tables - Removable and stackable trays with galvanized metal structure and double plastic mesh base.
Dimensions: 2.00 × 0.95 m (12 cm feet). - Up to 60 per dryer

Ventilated trolley - Facilitate the circulation of drying tables and force air circulation. Its use reduces the drying time by up to 30%, also improving its quality. - Up to 4 per dryer

Ventilated boxes - Boxes with wheels allowing easy movement. They are ventilated in an upward direction, provide faster drying and substantially reduce labor. They can be loaded and unloaded mechanically outside the dryer.
Dimensions: 1.5 × 1.5 × 1.5 m. - Up to 3 per dryer

See optional equipment in the online store
