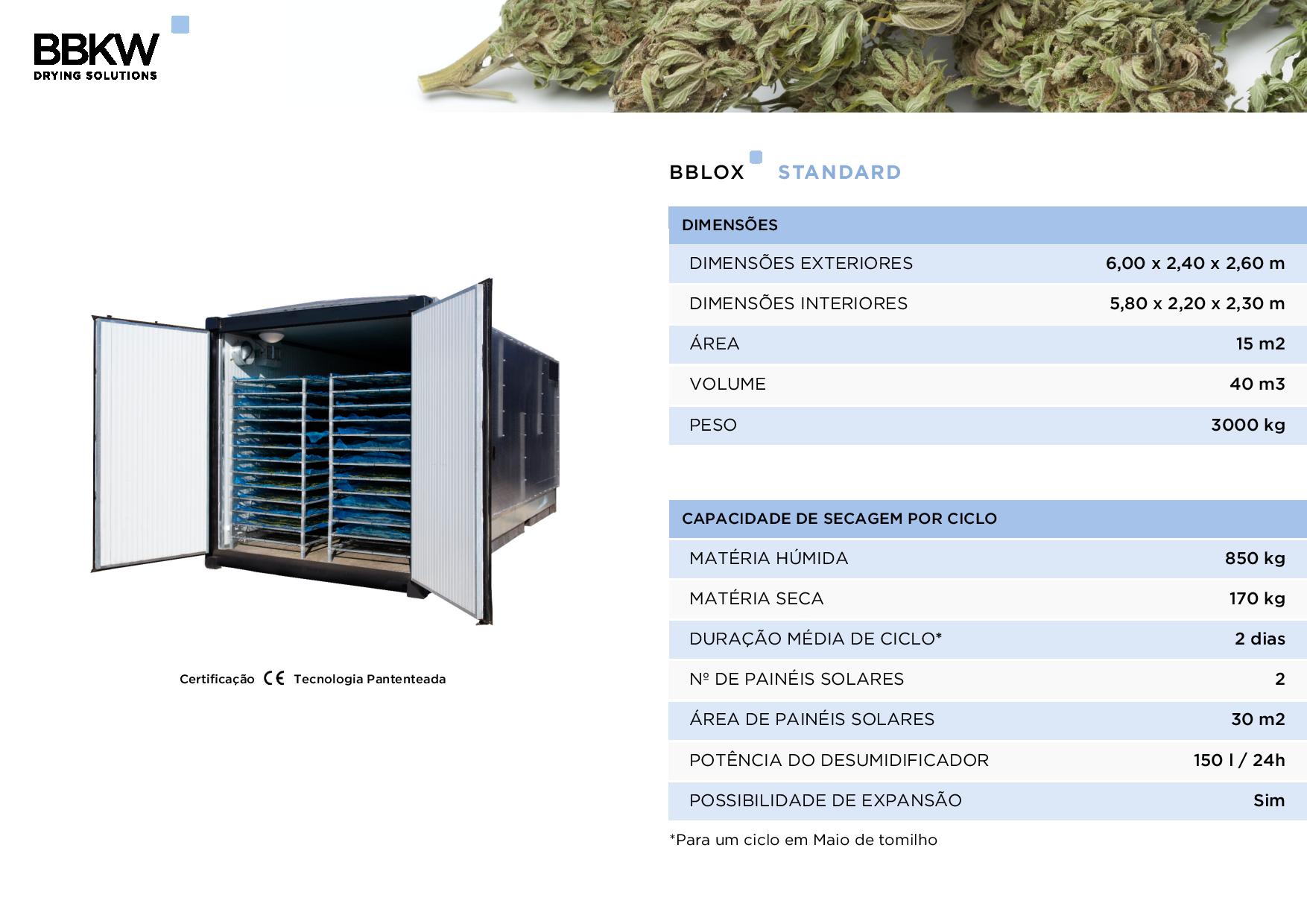

HYBRID SOLAR DRYER - AROMATICS AND FOOD - BBKW STANDARD

HYBRID SOLAR DRYER - AROMATIC, MEDICINAL PLANTS AND FOOD - BBKW STANDARD

The Standard module consists in a metal structure coated by steel panels with 3 mm of thickness, followed by an air chamber of 10 mm and isothermal panels with 30 mm.

SOLAR COLLECTOR
Made in polycarbonate, with calibrated temperature and humidity sensors.

AIR FORCING
The intake and exhaust air in the drying chamber is processed through ventilation ducts, equipped at the end with 3 motorized flow registers and 2 axial centrifugal extractors.

2 x Extractor – Volume flow rate 990 m 3 / h and maximum power of 110 W
3 x Damper actuators for intake air – power 1,5 W
3 x Temperature and Humidity sensors
6 x Fan – Helical fan with maximum power of 120 W

DEHUMIDIFICATION AND HEATING
Condensing dehumidifier with extractive capacity of 150 l water/day and volume flow rate of 1000 m 3 / h.
2 variable power heaters: 650, 1500, or 2000 W and a volume flow rate of 186 m 3 / h.

INFORMATIC MODEL
1 x Electric switchboard in a IP65 box with:
A processor with web server acting on 2 modules of activation of relays (capacity of actuation up to 12 devices).

2 x Dehumidifier
2 x Heater
1 x Auxiliary equipment (fan or another) + jack
3 x Damper actuator (for ceiling and side panels and exhaust extractor)
3 x Ventilated extractor
3 x Temperature and relative humidity sensors (for ceiling and side panels and inner chamber)

COMMUNICATION
SIM slot for data card of any mobile operator
Ethernet rj45 slot

DRYING EQUIPMENT (OPTIONAL)
Drying tables - Removable and stackable trays with galvanized metal frame and double plastic mesh base.
Dimensions: 2,00x 0,95 m (feet 12 cm) - Up to 60 per dryer

Ventilated trolley - Improving air circulation of drying tables. Its use reduces drying time up to 30% less, improving the product quality.
Up to 4 per dryer

Ventilated boxes - Boxes with wheels allowing easy movement. They are upwardly ventilated, provide faster drying and substantially reduce labor. They can be mechanically loaded and unloaded outside the dryer.
Dimensions: 1.5 x 1.5 x 1.5 m - Up to 3 per dryer
