TRANSPLANTER CHECCHI & MAGLI FOXDRIVE

Price
Query
(VAT 13% not included)
Observation:
CHECCHI & MAGLI FOXDRIVE
  Connection to 3 points of the tractor chassis with 2 wheels w / mechanical regulation, p / adaptation of tranplantador the profile type (ridge or shallow). Each transplant unit is equipped with: 1 chain Standard 12 provided with clamps with adjustable clasp. Adjusting the distance between plants, c / allowing interchangeable gears 9, c / o system standard calipers  23 to 80cm lengths; 1 anatomical seat in plastic, w / its adjustable metal bracket, 2 footrest removable metal, 1 adjustable harvest by mechanical system, 2 press wheels and 1 box-door plants.

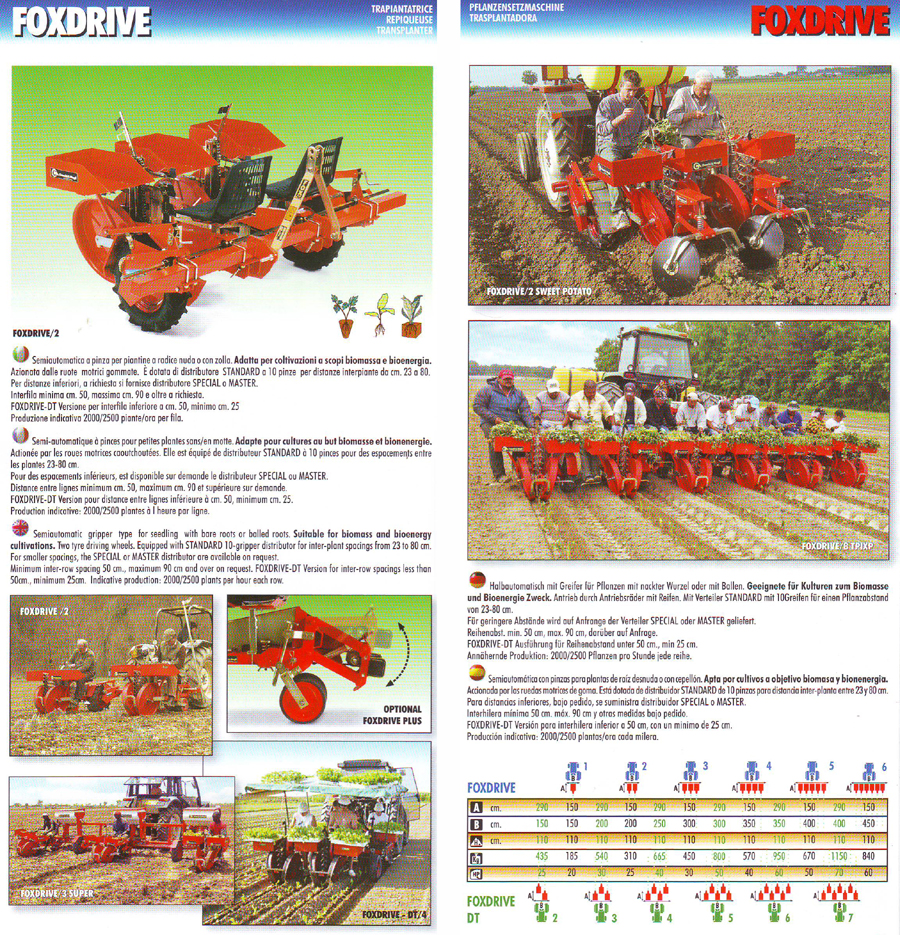

This semi-automatic transplanter has been specifically designed for transplanting vegetables, flowers, nursery and
tobacco seedlings with bare roots or peat balled roots with a conical, pyramidal or cubical shape.
Foxdrive guarantees uniform transplanting depth, perfectly upright positioning constant distance between
rows and between plants on the row and optimum ridging.

Indicative production:
2000-2500 plants per hour each row.

The Foxdrive transplanter is driven by its own tyred driving wheels, and must be applied to a tractor equipped with

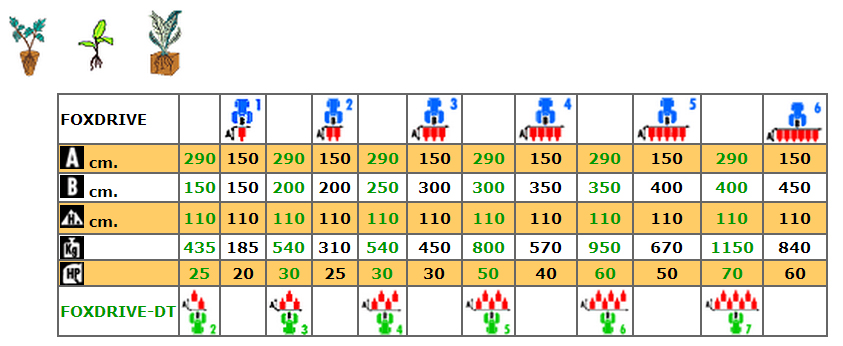

universal three-point linkage. The machine, available from one to sevenrows models, allows to adjust the distance
between rows in the Foxdrive model from a minimum of 50 cm. to a maximum of 90 cm. (over by request), or in the Foxdrive DT model (with double frame) from a minimum of 25 cm. to a maximum of 50 cm. It is equipped with a gripper-type distribution system which allows to change the distance between plants on the row according to the type of distributor.

STANDARD 10 grippers
SPECIAL     15 grippers
MASTER     20 grippers
