ROUND-BALLER FOR CUT VINE BRANCHES QUICKPOWER 1230

Price
Query
(VAT 13% not included)
Observation:
TRANSPORT FROM ITALY NOT INCLUDED IN THE PRICE
ROUND-BALLER FOR CUT VINE BRANCHES QUICKPOWER 1230

Round bale wrapper for vineyard debris with
distance between rows greater than 1,600 mt wide

QUICKPOWER is a round baler for pruning and trimming vines.
The machine has a new design, is extremely versatile and technologically advanced.
QUICKPOWER is constructed using special hardened special heat treatment rollers
It is designed to minimize the absorption of energy by means of mechanisms that rotate the walls of the compression chamber.
On average, QUICKPOWER requires less than one minute to complete the entire processing cycle:

- Loading material
- Packaging and packaging
- Unloading of the bale by the rear hatch.

The bale weighs approximately 25/35 kg. The weight can be changed by increasing or decreasing the pressure inside the chamber.

QUICKPOWER is capable of baling branches and remnants of cut prunings with a diameter of up to 30 mm.
The machine successfully addresses the issue of biomass.

QUICKPOWER is available in three models, designed for different width lines.

Pruning Packing Network
QUICKPOWER uses a special PP (polypropylene) network for the packaging operation,
designed specifically to keep the various types of cut vine branches compact.
Alternatively, it is possible to wind the bales with the SISAL natural rope.

The bale produced has the following dimensions: height 600 mm - diameter 400 mm

TECHNICAL CHARACTERISTICS

Height - 1000 mm
Width - 750 mm
Length - 1172 mm
Weight (complete with roller holder) - 440 kg

Size of the bale
450 mm (C) x 400 mm Ø
Bale weight - 18/23 kg





OPTIONAL
Hydraulic collection system
The hydraulic take-up device must be fitted to all unequipped power units
with the grounding power take-off. If any material gets caught in the pick-up, it is possible to engage the
hydraulic pick-up mechanism to "turn off" the lock.

Forks
The collection forks, needed when working on stony soil, prevent the transfer of rocks
and stones inside the machine's packaging chamber. The Carrier collects the unloaded bales
significantly reducing the work cycle.

It is available in two models that respond to different working conditions:

8CM Bale carrier
It can carry eight bales, seven on the conveyor and one on the baler.

The 8CM Bale Carrier is particularly suitable for working on flat or slightly
slopes, as well as in vineyards with trellising systems.

The 4CM Bale Conveyor
It can carry four bales, three in the conveyor and one in the baler. Thanks to its small size, the
4CM Bale Conveyor is suitable for working on steep slopes, in canopy vineyards
or in vineyards with short lines. The bullets are then discharged from the rear hatch by activating the hydraulic system
(double action).

Hydraulic Wiring Brushes
When assembled, the brushes increase the pickup width up to 1,800 mm - 2,300 mm. Each brush is fed
by a hydraulic motor of 160 cc. The hydraulic pipe can be connected and disconnected using hydraulic couplers
quick release. Hydraulic brushes require a 3/8 "dual action control valve and are available only
for QUICKPOWER 1230.

CHARACTERISTICS REQUIRED OF THE POWER UNIT

- double acting hydraulic system
- 12 volt electrical system
- power at the PTO
- 15 kW and rotational speed 350 r.p.m.
- PTO with synchronized gear

N.B. The weight of the machine without accessories exceeds 500 kg, so use an appropriate power unit of weight.
Height - 1,000 mm
Width - 1,310 mm
Length - 1,160 mm
Weight - -550 Kg

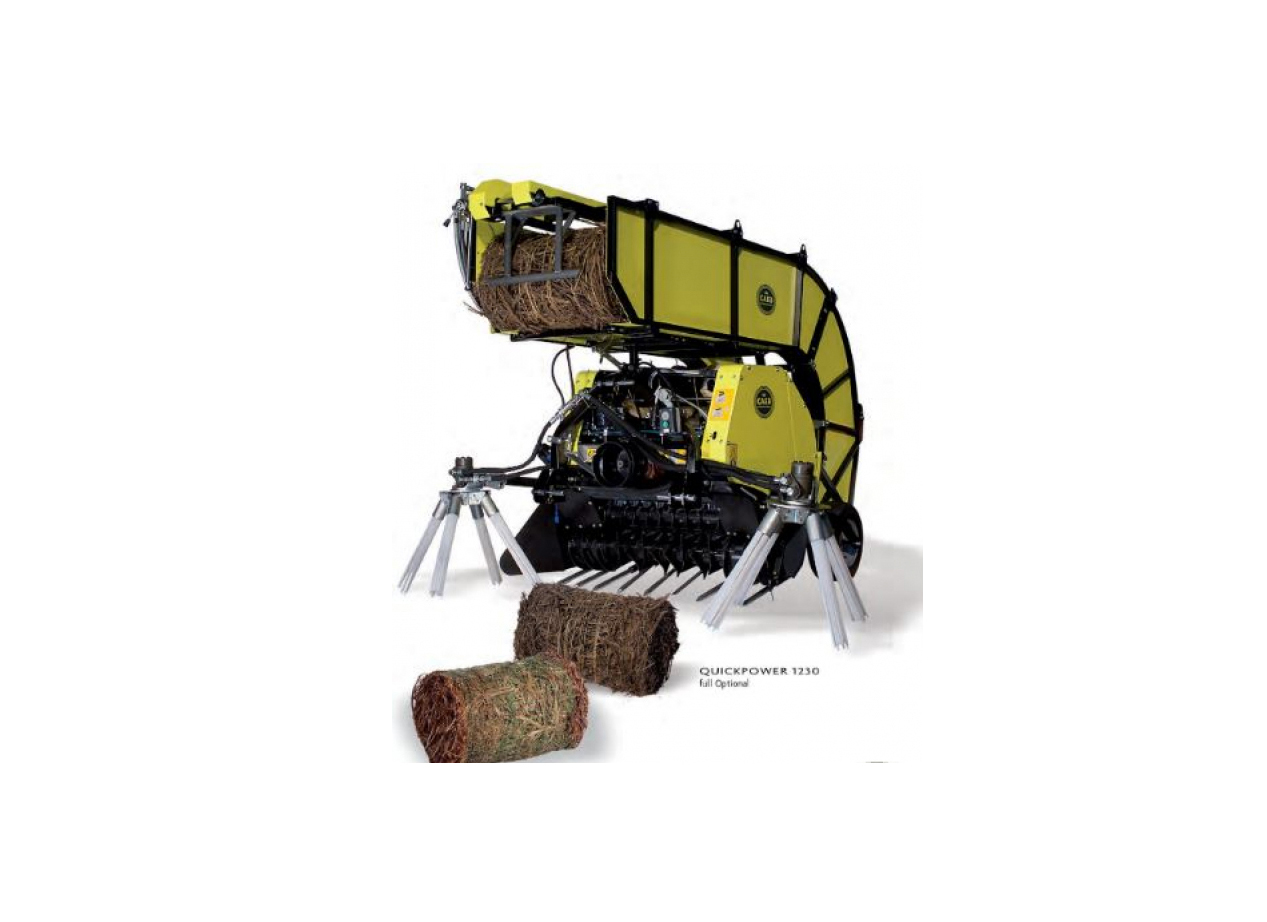

QUICKPOWER 1230 + Bale carrier 8CM + Brushes
Height with 8CM bale conveyor (including Quickpower) from 1,700 mm to 1,900 mm
Length with 8CM Bale Transporter (including Quickpower) 2,550 mm
Width with closed brushes 1,880 mm
Width with brushes in open position 2,300 mm

QUICKPOWER 1230 + 4CM Bales Conveyor + Brushes
Height with 4CM bale conveyor (including Quickpower) from 1,600 mm to 1,700 mm
Length with 4CM Bale Transporter (including Quickpower) 2000mm
Width with closed brushes 1,880 mm
Width with brushes in open position 2,300 mm

Weight of accessories
Bale Transporter 8CM - 235 Kg
Bale Transporter 4CM - 195 Kg
Complete pair of bale brushes - 62 kg
Complete collection forks - 32 Kg

Size of the bale
600 mm (C) x Ø 400 mm
Bullet weight - 25/35 kg
