BIOSHREDDER GREEN TECHNIK PROFESSIONAL BS 760

Price
Query
(VAT 13% not included)
Observation:
SEE DELIVERY TIMES
SHIPPING PRICE NOT INCLUDED FROM
THE MANUFACTURER TO THE CUSTOMER

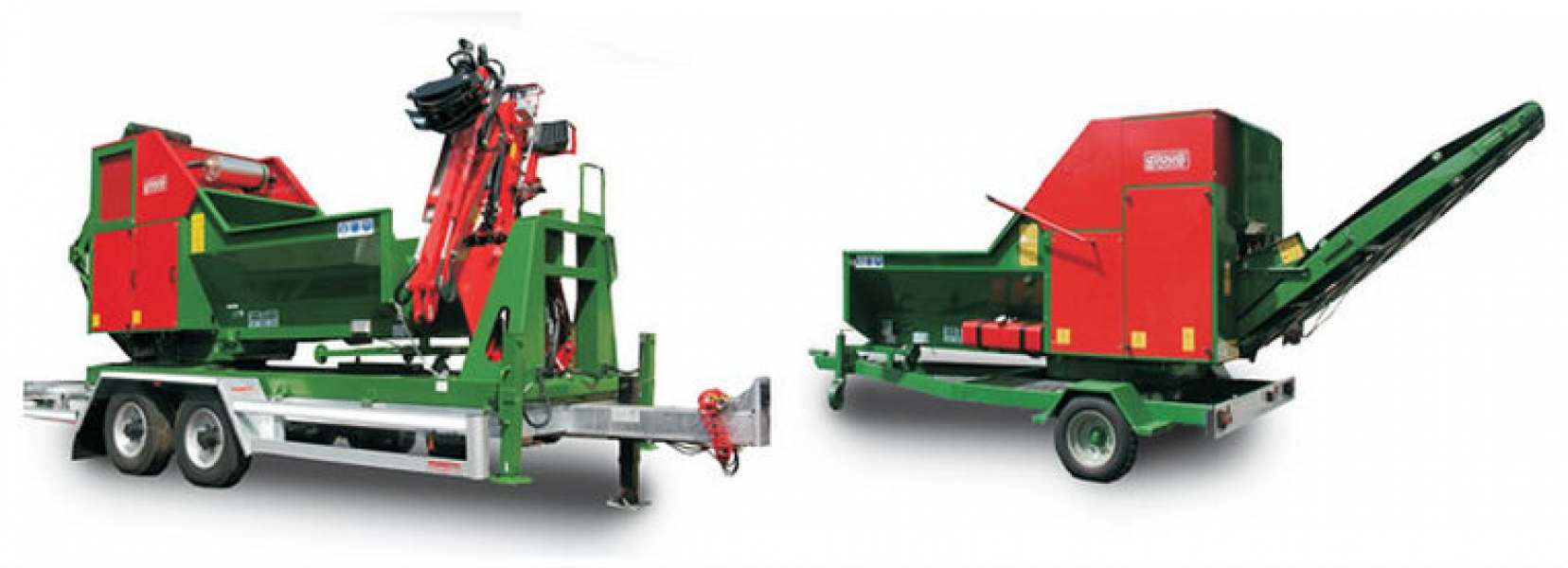

BIOSHREDDER GREEN TECHNIK PROFESSIONAL BS 760 SERIES

The Green Technik Shredder Mod. BS 760 is a professional
machine, designed and manufactured in the view of insuring
highest functionality and meeting the requirements for volume
reduction and compost-making. Owing to the wide choice of
equipment and drives available, the machine Mod. BS 760
offers excellent performances when used in industrial plants,
large farms, forestry, or by gardeners, garden and park
maintenance workers, public bodies, where the requirement is
for converting/recovering organic waste as trimmings and
rejects from the maintenance of parks and gardens, industrial
packages, pallets, waste from fruit and vegetable or flower
markets, discards from sawmills and other wooden materials.
All of these equipment versions, save for the fixed frame, are
with center plate rotating around 360°. A special electronic
“no-stress” system, as an option, automatically provides for
metering the material entering to the shredder, in relation to
the power output from the propeller. The unloading belt and,
by request, the loading hopper, may be folded down in order
to minimize the machine overall dimensions during the
transfer.

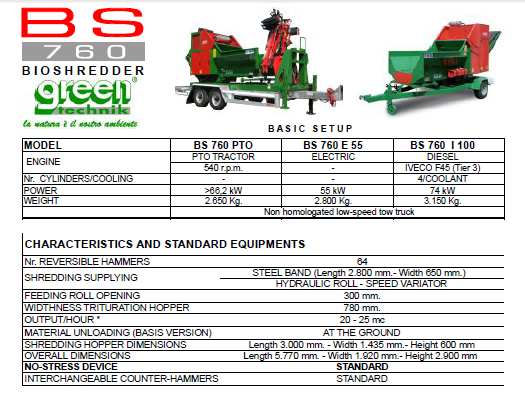

GENERAL DESCRIPTION MODEL: BS 760 I 126 HP WITH CAR FOR TRANSPORT AND CRANE
- IVECO DIESEL ENGINE (93 KW / 126 HP) 4 CYLINDERS, LIQUID COUPLING
- POWER SUPPLY WITH STEEL CURRENT + ROLL HYDRAULIC COMPACTOR ADJUSTABLE SPEED
- STRESS ELECTRONIC DEVICE WITH STANDARD HOROMETER
- WIDTH TRANSFER WIDTH MM. 1500
- LENGTH OF CARGO TRAWLER MM. 3000
- DIMENSIONS OF THE DOWNLOAD RACK: MM. 2800 X 650
- TIME PRODUCTION: FROM 20 TO 25 M3 / H.
- ELEVATION ROLL HEIGHT 3000 MM
- TRITURAVEL DIAMETER: 180 MM (DATA CONCERNING THE DIAMETER OF A SIMPLE TRUNK).
- USEFUL PASSAGE FOR CRUSHING GALHOS: 780 X 300 MM
- BRITAGE CHAMBER DIAMETER: 550 MM
- 64 SPECIAL STEEL REVERSIBLE FIXED MOUNTED 4-AXLES COMBINED WITH BOARDS - INTERCHANGEABLE

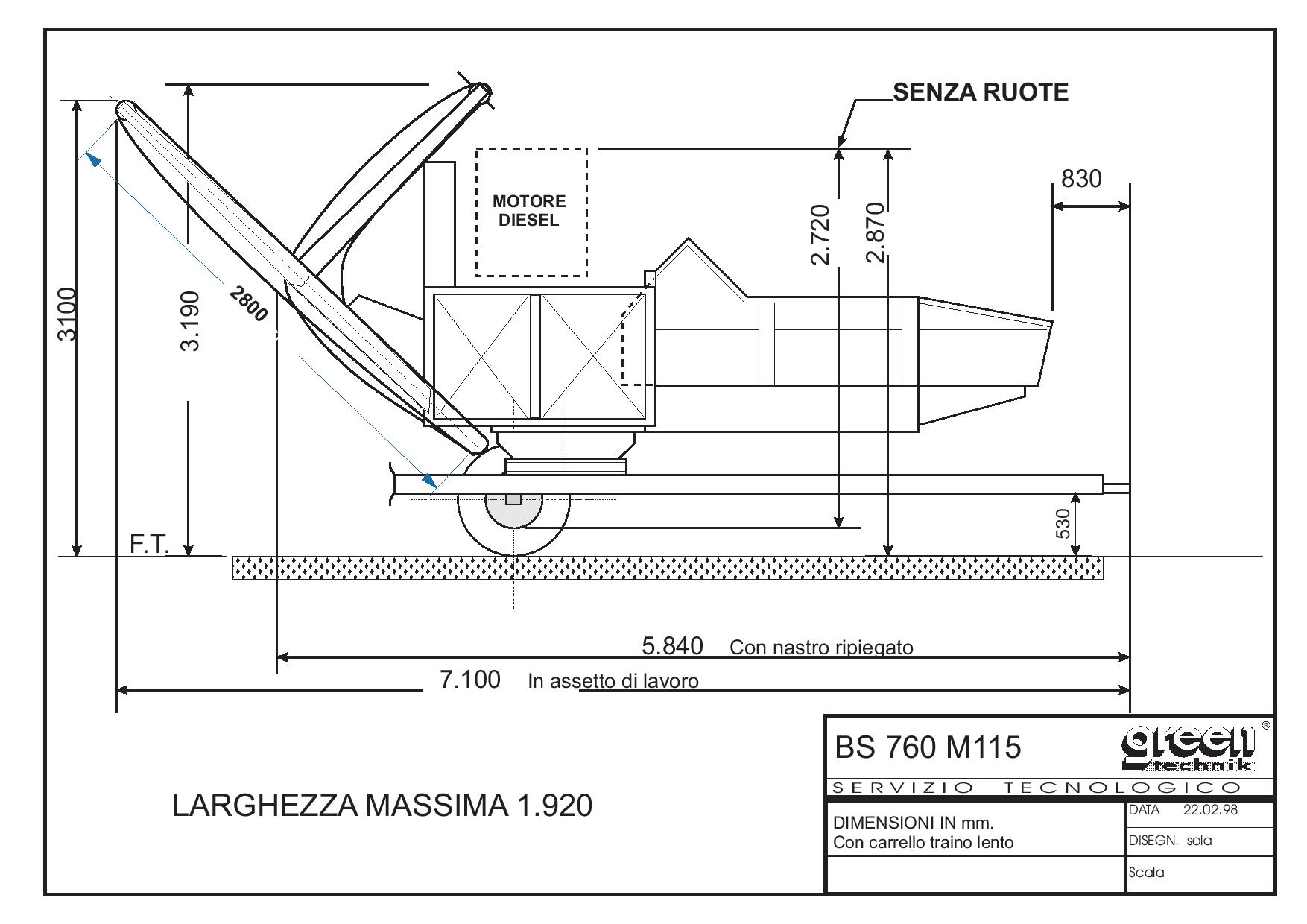

- GENERAL DIMENSIONS: LENGTH 5770 MM / WIDTH: 1920 MM / HEIGHT: 2900 MM
- WEIGHT (INDICATIVE): 3200 KG
- RUBBER DISCHARGE BELT (HEIGHT OF DISCHARGE 3000 MM)
- ELECTRO-HYDRAULIC CONTROLS AND REMOTE CONTROL WITH CABLE
- SUPPLEMENT FOR MIXED ROTOR (HAMMERS + KNIVES)
- ROTATING PLATFORM
- BLEEDING SYSTEM FOR BIOTRITURATOR MODEL BS 760 BRAND: GREEN TECHNIK
- GREEN HYDRAULIC CRANE TECHNIK WITH ROTARY CLAMP MODEL: GP 6000 N
- APPROVED TRANSPORT CAR - 80KM / H WITH AD AND ABS BRAKES FOR BIOTRITORATOR MODEL: BS 760 I 125 HP WITH CRANE

PRICE BS 760 I 126 HP COMPLETE - 71,467.00 €
GRUA HIDRAULICA GREEN TECHNIK WITH ROTARY TIP MODEL: GP 6000 N - 16.267,00 €
PRICE APPROVED TRANSPORT CAR - 80KM / H WITH AD AND ABS BRAKES - 26,250.00 €
DELIVERY TIME: UP TO 90 DAYS AFTER CONFIRMATION
TRANSPORT ITALY - PORTUGAL: TO COST
APPROVAL IN PORTUGAL: TO COST
